Asus ThunderboltEX 4, PCIe 3.0 x4, 2xTB4, 2xMiniDP input#1
Asus ThunderboltEX 4, PCIe 3.0 x4, 2xTB4, 2xMiniDP input#2
Asus ThunderboltEX 4, PCIe 3.0 x4, 2xTB4, 2xMiniDP input#3
ASUS

Asus ThunderboltEX 4, PCIe 3.0 x4, 2xTB4, 2xMiniDP input

ASUS 90MC09P0-M0EAY0

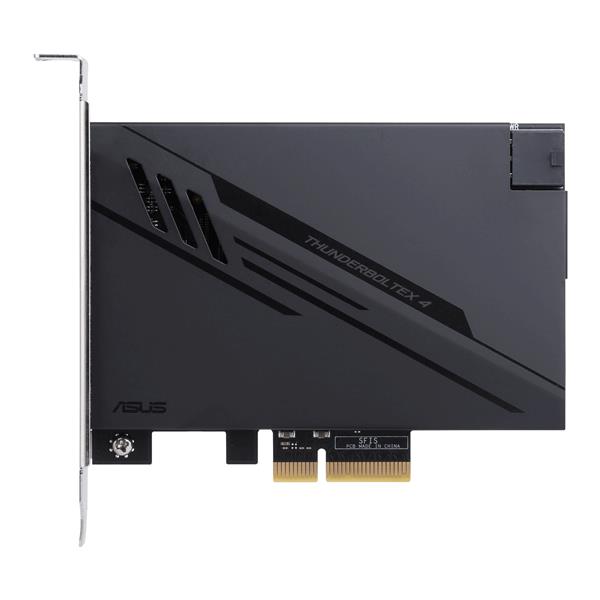

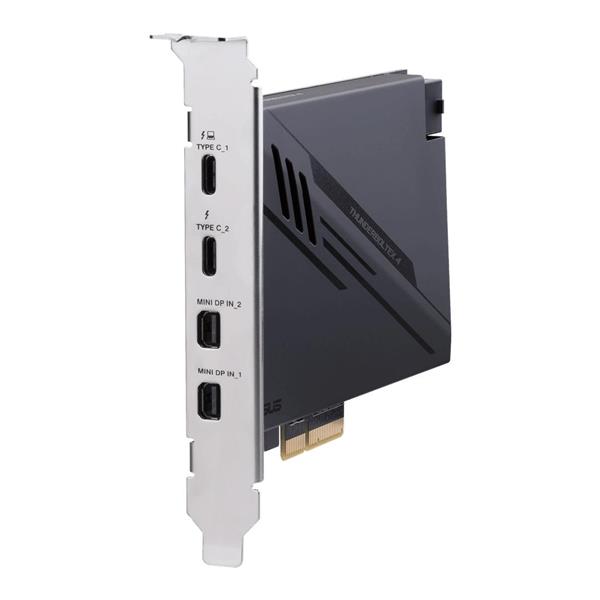

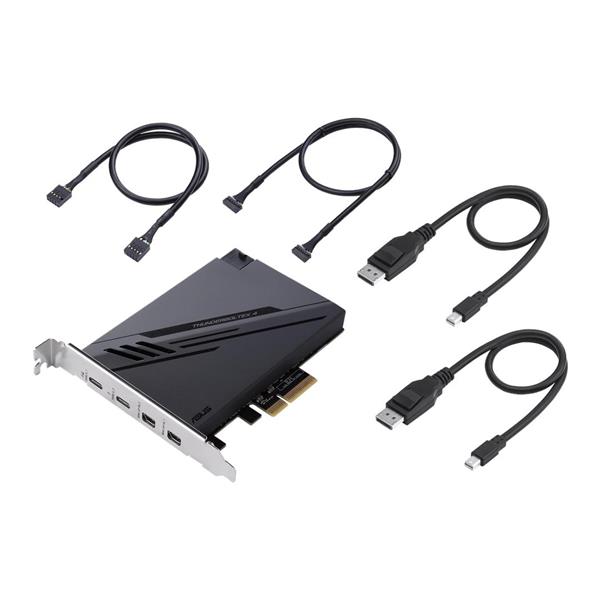

ASUS ThunderboltEX 4 expansion card, dual Thunderbolt™ 4 (USB-C®) ports, DisplayPort™ 1.4, PCIe® 3.0 x4 interface

• Intel®-certified Thunderbolt™ 4 add-on card
• 40 Gbps bi-directional bandwidth for superfast data transfers and video output
• Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five Thunderbolt devices in a daisy chain
• DisplayPort™ 1.4 for 8K Ultra HD support

Compatible Models
Please note that only ASUS Intel 500 series and later motherboards with a 14-1 pin Thunderbolt header can support ThunderboltEX 4 card.
*Refer to the following link for an up-to-date list of compatible models:

Art.nr: 18517
Beställningsvara (3-4 dagar)
⁨{$antal}⁩ ⁨{$enhet}⁩ i fjärrlager
1 039,20 kr

Anslutningar
Expansionskortets standardPCIe 3.0
UtgränssnittetMini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
Antal USB 2.0 anslutningar1
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar2
Design
InternJa
Egenskaper
KretsarIntel Thunderbolt 4 JHL8540
Vikt & dimension
Bredd117,7 mm
Djup180,5 mm
Fabrikat
TillverkareASUS
SKU90MC09P0-M0EAY0
Produktlänkhttps://www.asus.com/se/motherboards-components/motherboards/accessories/thunderboltex-4
