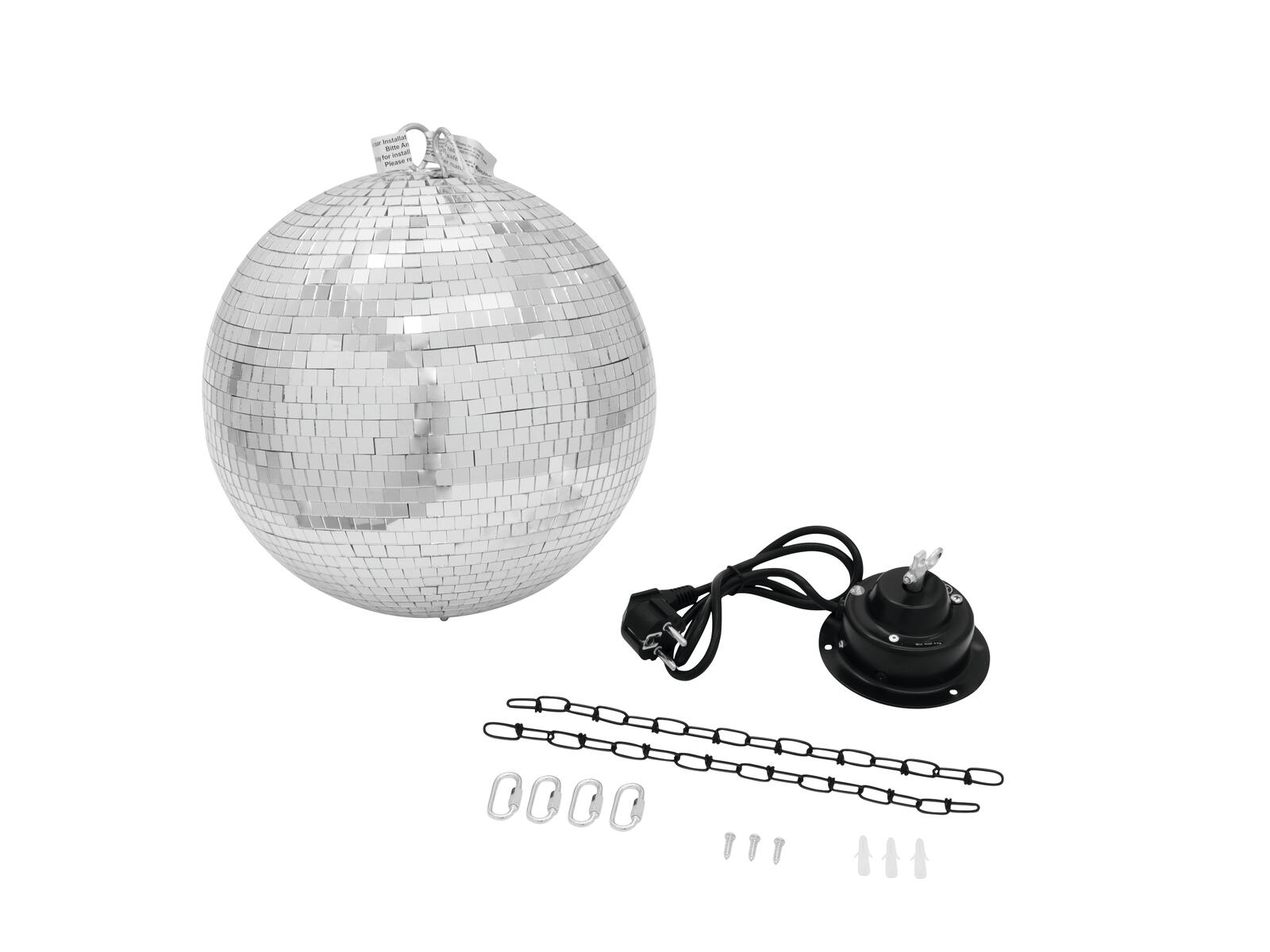

Set with motor, mirror ball and chain
motor
- Control via plug and play
- Suitable for a mirror ball with a diameter of up to 30 cm
Scope of delivery
- 1 x mirror ball
- 1 x motor
- 2 x chain
- 4 x chain link
- 3 x screw
- 1 x user manual
| Weight: | 1.92 kg |
| Mirror ball |
| Dimensions: | Diameter: Ø 30 cm |
| Weight: | 1.4 kg |
| Motor |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 4 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with safety plug |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | Approx. 0.9 m |
| Speed: | 1.5 RPM - 1.8 RPM , 360 ° forward/backward |
| Control: | Plug and play |
| Maximum load: | 4 kg |
| Max. mirror ball diameter: | 30 cm (EUROLITE) |
| Material: | Metal |
| Color: | Black |
| Dimensions: | Height: 8.5 cm
Diameter: Ø 12 cm |
| Chain |
| Material: | Metal, 2 mm |
| Color: | Black |
| Dimensions: | Length: 33 cm |
| Chain link |
| Material: | Metal |
| Color: | Silver, high-gloss |
| Dimensions: | Diameter: Ø 0.35 cm |
| Screw |
| Color: | Silver |
| Dimensions: | Length: 2.5 cm
Diameter: Ø 0.4 cm |
