21.5" ViewSonic TD2230, IPS 1920x1080, 5 ms, 10-point touch, VGA/HDMI/DP, högtalare, USB 3.0-hubb

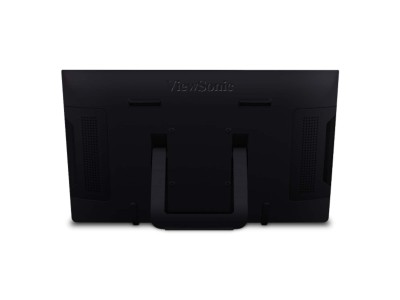

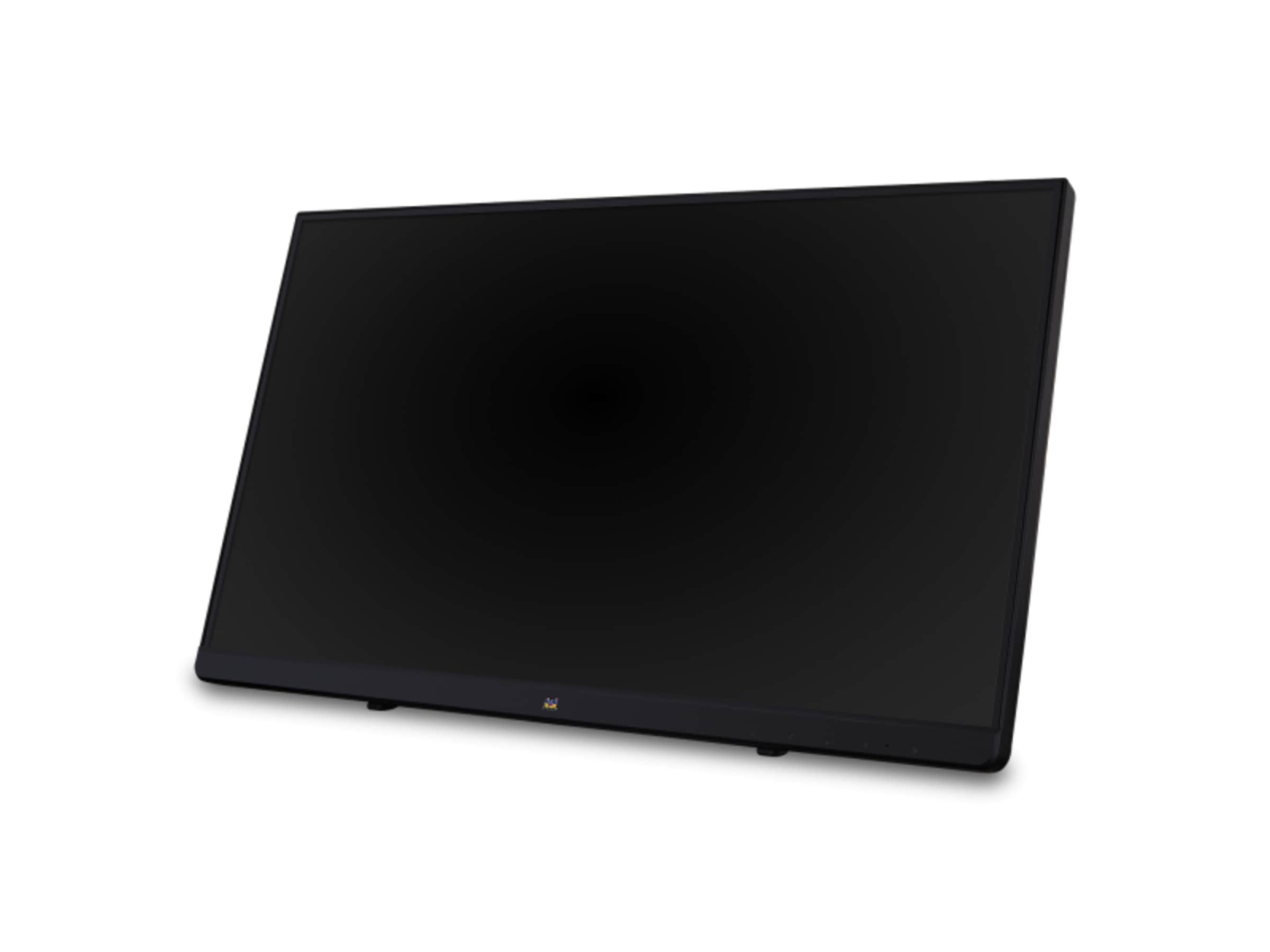

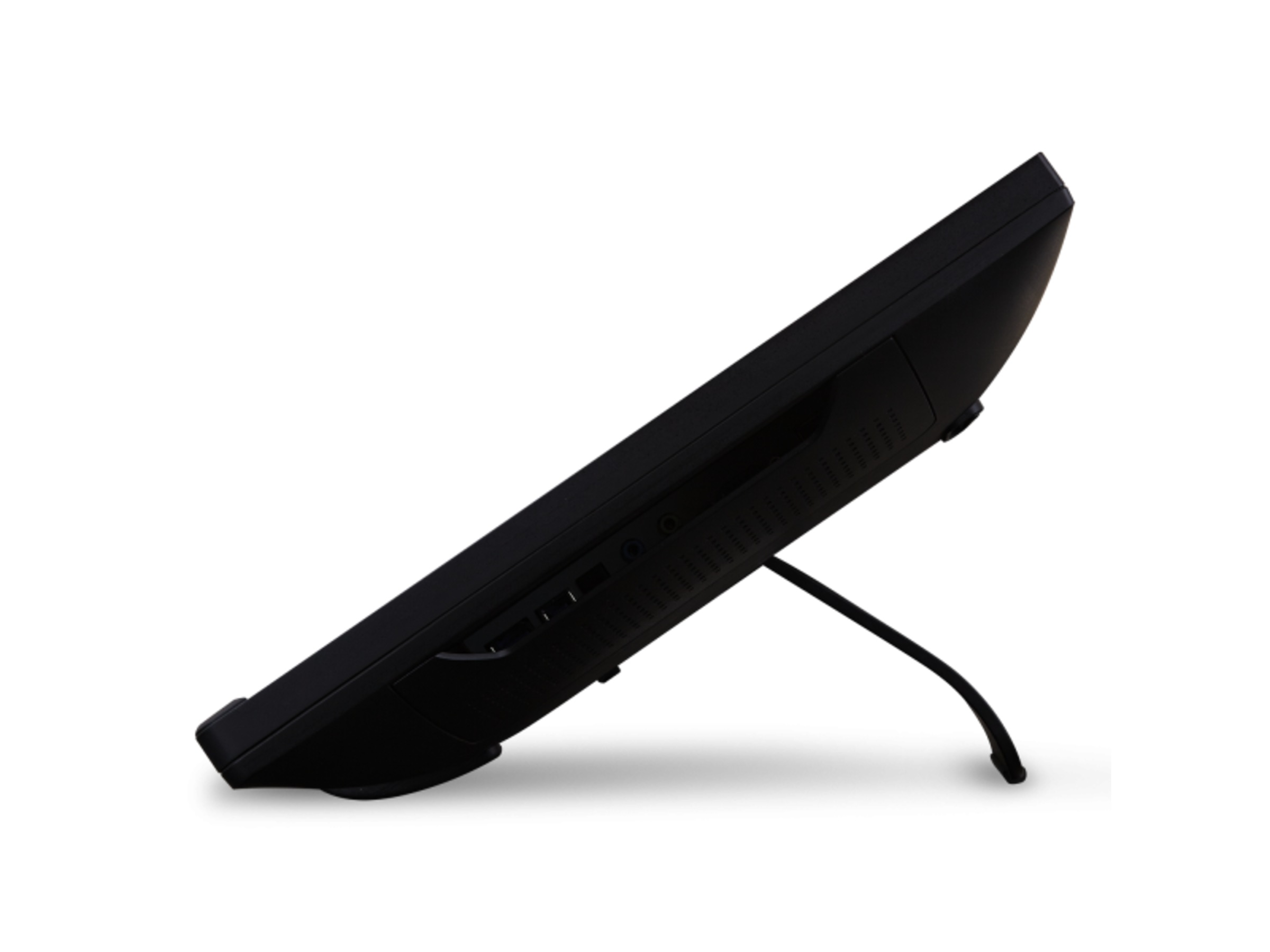

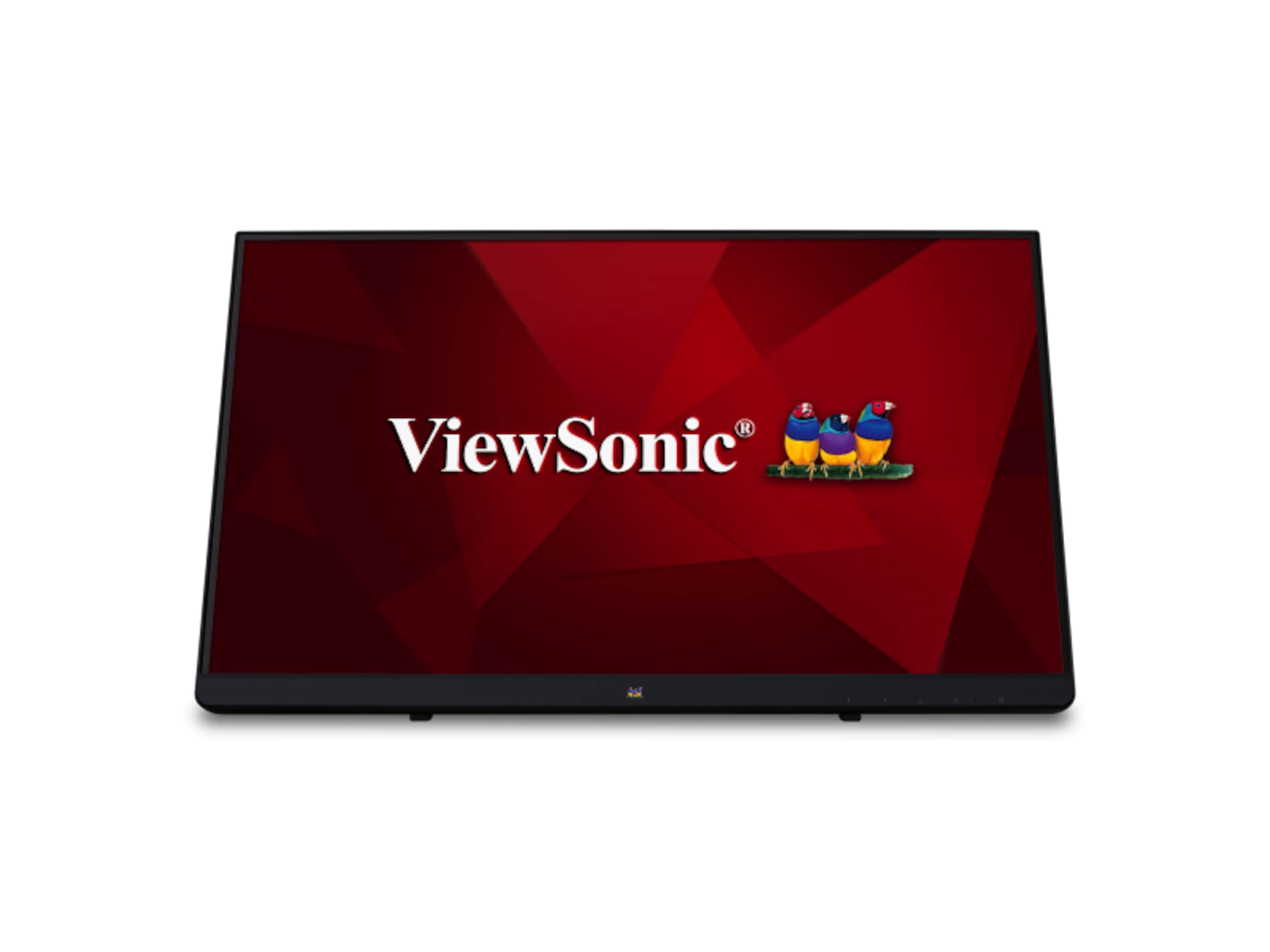

Viewsonic TD2230
OVERVIEW
The ViewSonic TD2230 is a 22” (21.5” viewable) Full HD display with 10-point projected capacitive touch and SuperClear® IPS panel, offering a responsive, intuitive touch experience with high-quality image performance at wide viewing angles for multi-user interactive environments. Users can tap, swipe, slide, pinch and nudge their fingers directly on the touch screen during group activities. This display is ideal for use as an informative kiosk in hospitality, retail, healthcare and corporate sectors, utilising customised applications for simple touch interaction. It is also suitable for group studies at schools, encouraging interactive learning, or for families enjoying multimedia entertainment or gaming at home.
The TD2230 features a durable edge-to-edge, 7H glass treatment and an ergonomic design that allows the display to be adjusted or sit flat on the table, providing durable surface quality and a smooth touch experience.
• Full HD 1080p resolution
• 10-Point Projected Capacitive Touch
• HDMI, DisplayPort and VGA inputs and USB ports
• Dual integrated speakers
• Durable, Scratch-resistant Screen
The ViewSonic TD2230 is a 22” (21.5” viewable) Full HD display with 10-point projected capacitive touch and SuperClear® IPS panel, offering a responsive, intuitive touch experience with high-quality image performance at wide viewing angles for multi-user interactive environments. Users can tap, swipe, slide, pinch and nudge their fingers directly on the touch screen during group activities. This display is ideal for use as an informative kiosk in hospitality, retail, healthcare and corporate sectors, utilising customised applications for simple touch interaction. It is also suitable for group studies at schools, encouraging interactive learning, or for families enjoying multimedia entertainment or gaming at home.
The TD2230 features a durable edge-to-edge, 7H glass treatment and an ergonomic design that allows the display to be adjusted or sit flat on the table, providing durable surface quality and a smooth touch experience.
• Full HD 1080p resolution
• 10-Point Projected Capacitive Touch
• HDMI, DisplayPort and VGA inputs and USB ports
• Dual integrated speakers
• Durable, Scratch-resistant Screen
21,5 tum
Art.nr: 9515
Beställningsvara
{$antal} {$enhet} i fjärrlager
4 790 kr
222,79 kr / tum
Produktspecifikation
Display
| Storlek (tum) | 21.5" |
| Upplösning | 1920 x 1080 pixlar |
| Paneltyp | ADS |
| Skärmtyp | LCD |
| Betraktningsvinkel (horisontell) | 178° |
| Synfältsvinkel (vertikal) | 178° |
| Kontrastförhållande (dynamisk) | 50000000:1 |
| Kontrastförhållande (medel) | 1000:1 |
| Ljusstyrka | 250 cd/m² |
| HD-typ | Full HD |
| Pekskärm | Ja |
| Antalet samtidiga beröringspunkter | 10 |
| Touch-teknik | Flerpunktsberöring |
Design
| Produktens färg | Svart |
Ergonomi
| Lutningsvinkel | 20 - 70° |
| Monteringsbar på väggen | Ja |
| VESA-fäste | Ja |
Förpackningens innehåll
| Kabel inkluderad | AC, Ljud (3,5mm), HDMI, USB |
Anslutningar
| Antal HDMI | 1 |
| Antal DisplayPort | 1 |
| Antal USB typ A-portar nedströms | 2 |
| Inbyggd USB-hubb | Ja |
| HDMI-version | 1.4 |
| USB-hubbversion | 3.2 Gen 1 (3.1 Gen 1) |
Miljökrav
| Fuktighet (förvaring) | 5 - 90% |
| Intervall för relativ operativ luftfuktighet | 20 - 90% |
| Temperatur vid drift | 0 - 40 ° C |
| Temperaturintervall (förvaring) | -20 - 60 ° C |
Strömtillförsel
| Energiförbrukning (SDR) per 1 000 timmar | 19 kWh |
| Strömförbrukning (vanlig) | 25 W |
Vikt & dimension
| Djup (med stativ) | 47 mm |
| Höjd (med stativ) | 299 mm |
Multimedia
| Inbyggda högtalare | Ja |
| Antal högtalare | 2 |
| Uteffekt (RMS) | 6 W |
Fabrikat
| Tillverkare | Viewsonic |
| SKU | TD2230 |
| Produktlänk | https://www.viewsonic.com/global/products/lcd/TD2230 |
